10000041
DMEGC 500W M10 N-Type Full Black Glas Glas (2.0mm)
1950x1134x30 mm
|
500 Wp
|
22.60%
|
Transparant
|
N-type TOPCon
|
Glas-Glas
|
Afbeeldingen
Ons beleid
-
Snelle levering - Voor 17:00 besteld, volgende werkdag geleverd
-
Geen afhandelingskosten - Boven € 1.000, - geen afhandelingskosten
Snel naar:
Productomschrijving

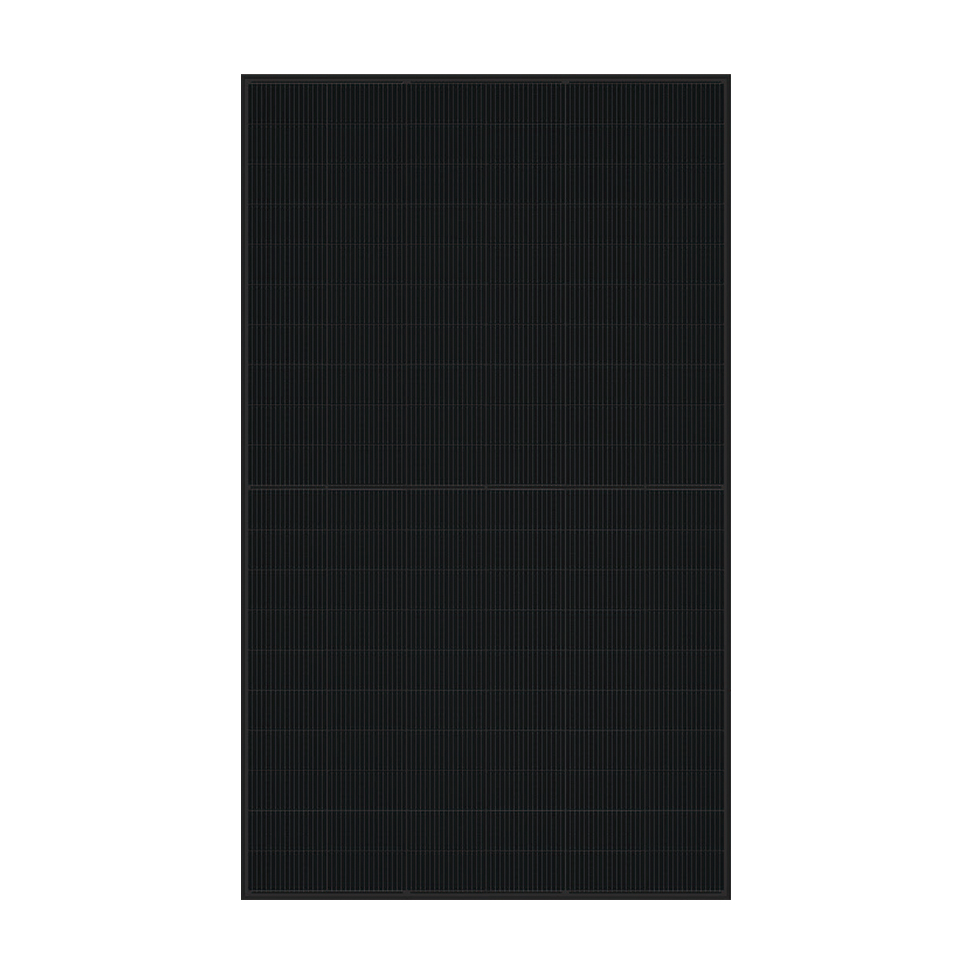

De DMEGC 500W M10 N-Type Full Black is een bifaciaal dubbelglas-paneel met een slank full black design.
- 500 W piekvermogen & 22,8 % module-efficiëntie voor optimale opbrengst per m²
- Bifaciale achterzij-opbrengst tot +30 % dankzij 80 % bifacialiteit
- 1,6 mm front- en 2,0 mm rear-glas voor robuuste bescherming en lange levensduur
- Lage degradatie: ≤ 1 % in jaar 1, ≤ 0,4 % jaarlijks
- 30 jaar lineaire vermogensgarantie & 25 jaar productgarantie
Productspecificaties
Specificaties
- MPN DM500M10RT-B60HBB
- Projectdoel Residentieel
- Grootte Groter dan 2 m²
- Type backsheet Transparant
- Efficiëntie 22.60%
- Gewicht 26.80 kg
- Celtechnologie N-type TOPCon
- Vermogen Wp 500 Wp
- Hoogte x Breedte x Dikte 1950x1134x30 mm
- Aantal op een pallet 36
- Aantal in een container 864
- Productgarantie 25 jaar
- PFAS-vrij PFAS-vrij
- Prestatiegarantie 30 jaar
- Max Power Voltage (Vmp) at STC 37.66V
- Max Power Current (Imp) at STC 13.30A
- Open Circuit Voltage (Voc) 44.70V
- Short Circuit Current (Isc) 14.22A
- Max Power (Pmax) at NMOT 376.00W
- Max Power Voltage (Vmp) at NMOT 35.22V
- Max Power Current (Imp) at NMOT 10.69A
- Open Circuit Voltage (Voc) at NMOT 42.09V
- Short Circuit Current (Isc) at NMOT 11.52A
- Max System Voltage 1500V
- Min. bedrijfstemperatuur -40°C
- Max. bedrijfstemperatuur 85°C
- Pmax Temp. Coefficient -0.29γ
- Voc Temp. Coefficient -0.25β
- Isc Temp. Coefficient 0.048α
- Maximum load Wind 2400Pa
- Maximum load Snow 5400Pa
- Bypass diodes 3
- Frame kleur Zwart
- Glas-Glas Glas-Glas
