11300006

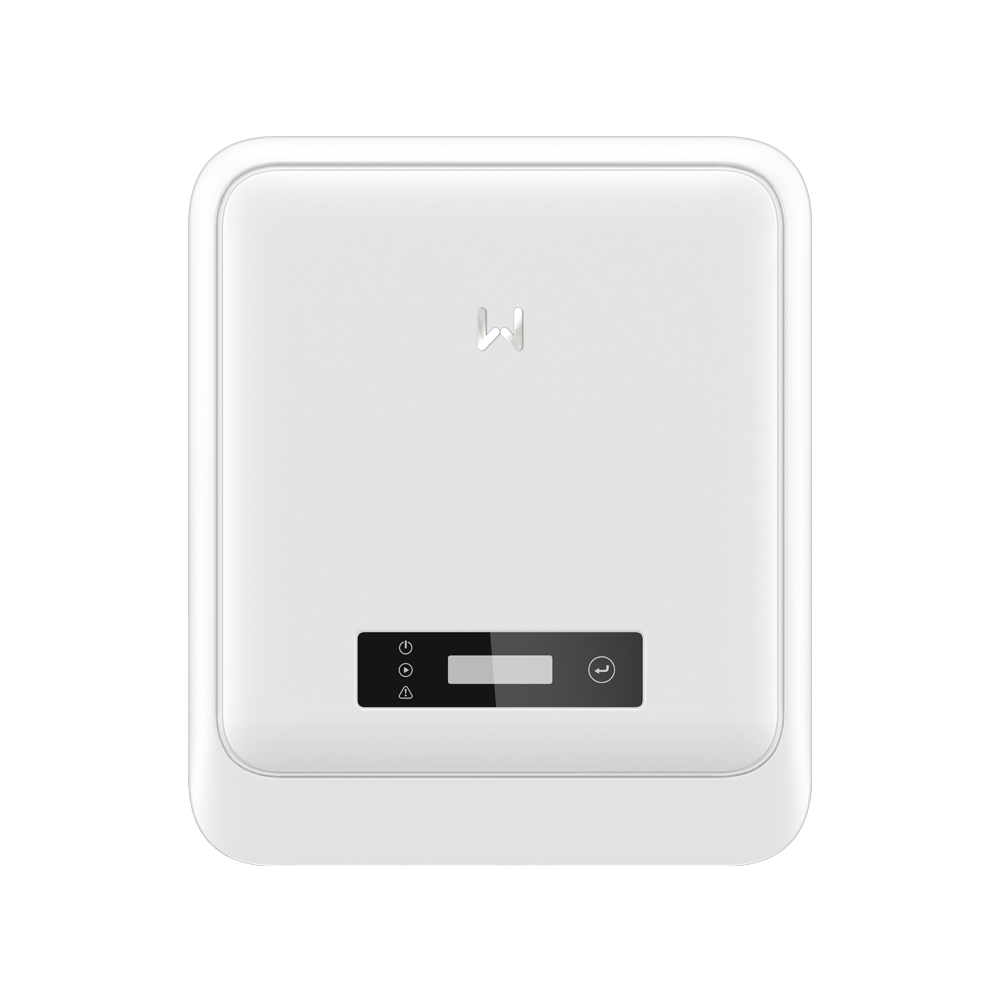

GoodWe 60KS-MT, RS485/ DC switch/ 5 jaar garantie + AFCI

Afbeeldingen

GoodWe 60KS-MT, RS485/ DC switch/ 5 jaar garantie + AFCI
GoodWe

Meld u aan om direct uw prijzen te zien

Aantal Omvormers

Aantal:

Prijs

per stuk
per stuk

Ons beleid


Snelle levering
Voor 17:00 besteld, morgen in geleverd

Geen afhandelingskosten
Boven € 1.000, - geen afhandelingskosten

Snel naar:

Productspecificaties

Specificaties

  • Projectdoel Commercieel
  • Grootte Kleiner dan 2 m²
  • Gewicht 55 kg
  • Hoogte 520 mm
  • Breedte 220 mm
  • Dikte 660 mm
  • Hoogte x Breedte x Dikte 520x220x660 mm
  • Aantal fasen 3-fase
  • Type omvormer String
  • Vermogen W 60000 W
  • Vermogen Groep KW >30 KW
  • Productgarantie 5 jaar
  • Min. bedrijfstemperatuur -30°C
  • Max. bedrijfstemperatuur 60°C
  • Model SMT
  • Max. DC Input Voltage 1100 V
  • Max. Input Current per MPPT 30 A
  • Max. AC Active Power 66000 W
  • Nominal Output Voltage 400 V
  • Nominal AC Grid Frequency 50 Hz
  • Max. Output Current 9.6 A
  • Max. Efficiency 98.6
  • European Efficiency 98.1
  • Cooling Fan cooling
  • Ingress Protection Rating IP65
  • Communication RS485
  • Topology Non-isolated
  • Number MPPT's 6
  • Numbers strings MPPT 2
